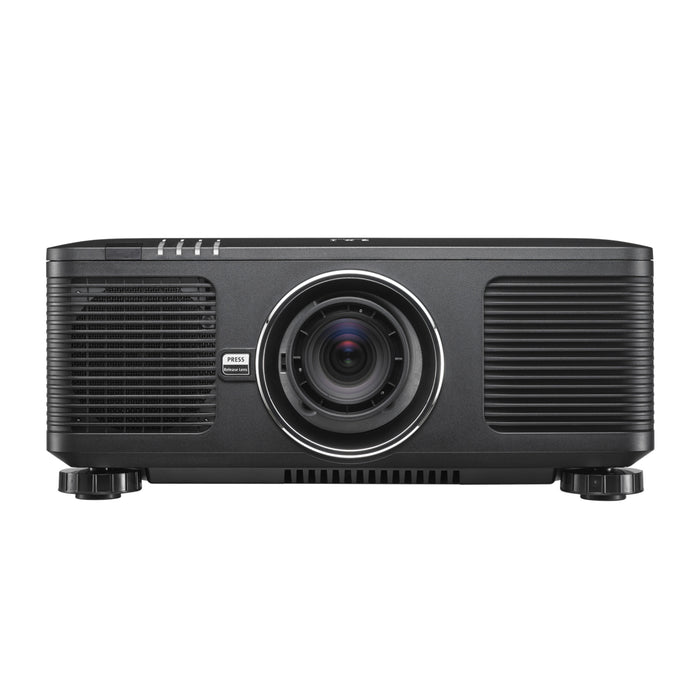

Vivitek DU8195Z-BK Professional WUXGA Laser Projector (13,500 Lumens) DU8195Z-BK

High performance, high brightness WUXGA laser projector with HDBaseT, a full suite of display ports and long life laser light source delivering high performance and prestige rich image.

• The DU8195Z is a class leader in the next generation of advanced projection technology — LASER — at 13,500 ANSI Lumens bright. Built lamp-free, it provides a low cost of ownership, with minimal maintenance, and gives a stable, high-quality projection for up to 20,000 hours. A sealed optical engine and filter-less design provides optimal performance, making it an ideal solution for large venues. With impressively vivid colors, the DU8195Z offers the most immersive big-screen experience available in digital projection.
• Widely regarded as the future of professional and consumer projection technology, laser projectors possess numerous advantages over traditional lamp-based systems. From enhanced brightness to minimal costs of ownership, laser projectors have quickly become the optimal projection choice for a diverse range of applications.
• Laser phosphor engine incorporating a lamp-less design that is mercury-free and environmentally friendly.
• 13,500 ANSI lumens with a dynamic 10,000:1 contrast ratio for an amazing image quality.
• Built-in color sensor to maintain constant color and an optimal brightness ratio.
• Low maintenance with up to 20,000 hours of operating time.
• Native WUXGA resolution with a maximum WUXGA resolution.
• Built-in hardware edge blending and warping functionality.
• Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility.
• Lens Positioning Memory (LPS) for quick recall of user defined lens positions (focus, zoom and lens shift).

Features

• ENHANCED IMAGERY: From the first time they power on to their final use before being replaced, high intensity discharge lamps (central to lamp-based projectors) steadily lose fifty percent of their initial brightness capability. While this degradation is an accepted aspect of lamp-based systems, brightness decay affects laser projectors to a much lesser degree. Over the course of their 20,000 hour lifetimes, blue laser diodes only diminish by twenty percent, resulting in greater brightness over dramatically longer periods of use. Furthermore, lasers can achieve significantly greater peak brightness levels than HD lamps, often producing twice as many lumens.

Lamp-based Projector                                  Laser Projector

• HOW IT WORKS: To generate a full spectrum of color, the 3 primary colors have to be created from a single color laser – in this case, a blue laser. This is achieved by using a cluster of blue lasers that shine onto a spinning yellow phosphor wheel that also incorporates a clear segment that allows the blue light from the lasers to shine through (this is the blue primary color). The generated yellow light then passes through a color wheel that in turn generates red and green – the other primary colors. After passing through a diffusion window, the colored light is presented to the Digital Micro Mirror chip, the imaging device. The DMD switches at a very high rate and presents the on, colored pixels to the optical lens system for display on the screen or projected surface. A simple, precise technology that is efficient and generates sharp, and clearly defined images, as only a single chip is required.

• MINIMAL REQUIRED MAINTENANCE: Perfect for corporate, education, retail, and government environments, where reliability and low cost of ownership are critical, the lamp-less operation of laser-based projectors grants up to 20,000 hours of sharp, maintenance-free operation. Featuring an instantaneous power-on and off, a sealed optical engine, and an airflow-optimized system layout, the DU8195Z boasts the industry-leading reliability and durability synonymous with Vivitek.

• EXCELLENT CONNECTIVITY: The Vivitek DU8190Z provides the connections necessary for a large venue and many other environments: HDMI input, 3G-SDI, HDBaseT, BNC for YPbPr/RGBHV, VGA input for PC and Laptop, S-Video, Composite video, IR input, Rs232c and 12V Trigger for screen automation.
• LAN support compatibility of the following applications:
• LAN Control — Cestron Roomview, Connected
• LAN Control — Crestron eControl
• LAN Control to RS232 (RS232 by Telnet)

• Picture-in-Picture (PIP) for simultaneously image projection from two different active sources.
• Full suite of display connectivity inputs and outputs including: HDMI v1.4a, DVI-D, Component (5 BNC) , VGA-In, 3G-SDIIn/ Out, VGA-Out, HDBaseT.
• HDBaseT interface with support for distribution of digital HD video content over standard CAT5e/6 LAN cable.
• 3D compatibility with DLP Link and HDMI 1.4 technology support (Blu-ray, side by side, frame packing, top and bottom) for dazzling and realistic life-like images.
• Portrait mode projection allows the projector to be easily setup and installed in a 90° installation.
• 360° operation and projection design for set up in all angles.
• Network ready for integration and system administration via RJ45.
• Crestron RoomView integration for network monitoring and management.
• Eight (8) interchangeable lens options with quick touch lens release design for easy lens removal and reinstallation.
• Sealed optical engine and filter-less design keep dust out and improves performance.
• 24/7 continuous operation with no downtime.
