Christie QwikRig Rigging Frame V2 140-154101-01
by Christie
Original price
$1,990.00
-
Original price
$1,990.00
Original price
$1,990.00
$1,990.00
-
$1,990.00
Current price
$1,990.00
In Stock & Ready to Ship
All orders are shipped within 1 - 2 business days. Product ETA 5 - 7 business days.

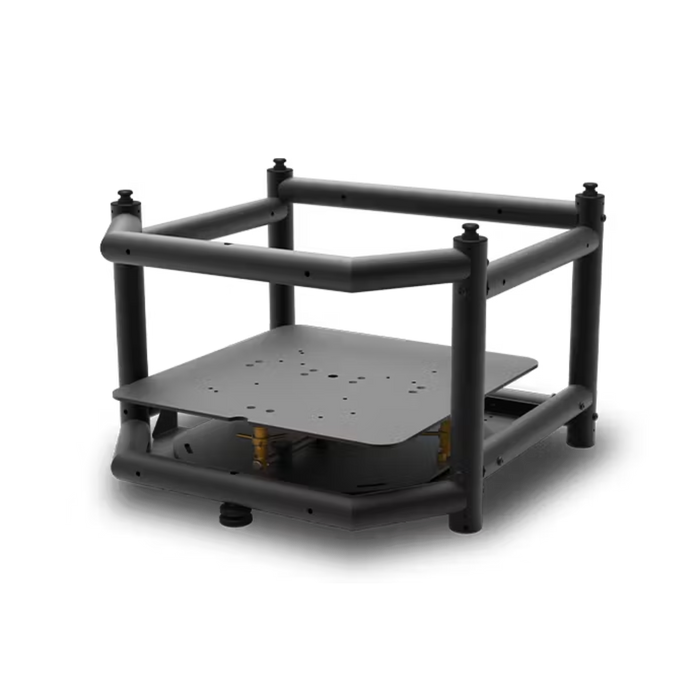

The Christie® QwikRig Rigging Frame V2 redesigns the original Christie® QwikRig Rigging Frame to support the use of Ultra-Short Throw (UST) L-shaped lenses, including the GS UST 0.37-0.4:1 GS series lens.
- Designed for the newest GS and Inspire Series 1DLP® projectors, this single assembly rigging frame fastens to the bottom of your projector.
- Up to three V2 frames and projectors can be stacked and rigged in normal or inverted orientations.
- This frame can also be used to mount the projectors to truss in portrait orientation.
- Installation and adjustments can be done quickly and easily by one person.
Features:
- Independent controls for adjusting pitch, yaw and tilt for quicker and more accurate setup with lock downs available for each adjustment.
- Individual projector adjustments within a stack (up to three projectors high) enabling modifications to a single projector without affecting the other connected projectors.
- Standard tubing (50mm OD pipe) accommodates common burger and industry clamps.
- Design enables easy access to projector for installation, filter replacements and maintenance.
- Required for use of L-shaped UST lenses.
- Packaged (GW): 28.25kg (62.78lbs).
- Unpacked: 25.65kg (57lbs).
- Dimensions: 468mm H x 685mm W x 663.5mm D
